Production of Electroplated Diamond Tools

Electroplated diamond tools are manufactured using an electrochemical process in which diamond grains are permanently fixed to a tool body by means of a metallic bond, usually nickel. This process is widely used for grinding, dressing, cutting, and precision tools where high profile accuracy, good cutting performance, and a defined diamond grain distribution are required.

At the beginning of the process, the tool body is carefully prepared. The surface must be clean, free of grease, and properly activated to ensure a reliable bond between the nickel layer and the tool body. Depending on the tool geometry, the diamond grains are then positioned on the surface or selectively embedded during the process. It is essential that the diamonds are held firmly in place while still protruding sufficiently from the bond to perform their cutting or grinding function effectively.

The actual coating process takes place in an electroplating bath. This bath contains nickel ions, for example from nickel sulfate or nickel chloride. Special additives may also be used to influence the properties of the deposited nickel layer, such as hardness, grain structure, layer uniformity, and bonding strength.

The tool body is connected to the negative terminal of the power supply and acts as the cathode. A nickel anode is connected to the positive terminal. Once the tool and the anode are immersed in the electroplating bath and current is applied, nickel ions migrate toward the tool surface. There, they gain electrons and are deposited as metallic nickel. During this deposition process, the diamond grains are gradually surrounded by the nickel layer and mechanically embedded.

Precise control of the electroplating process is essential for the quality of the finished diamond tool. The coating thickness, the embedding depth of the diamond grains, and the uniformity of the coating strongly depend on the process parameters. These include the composition of the electrolyte, pH value, bath temperature, electrolyte movement, and, above all, current and voltage.

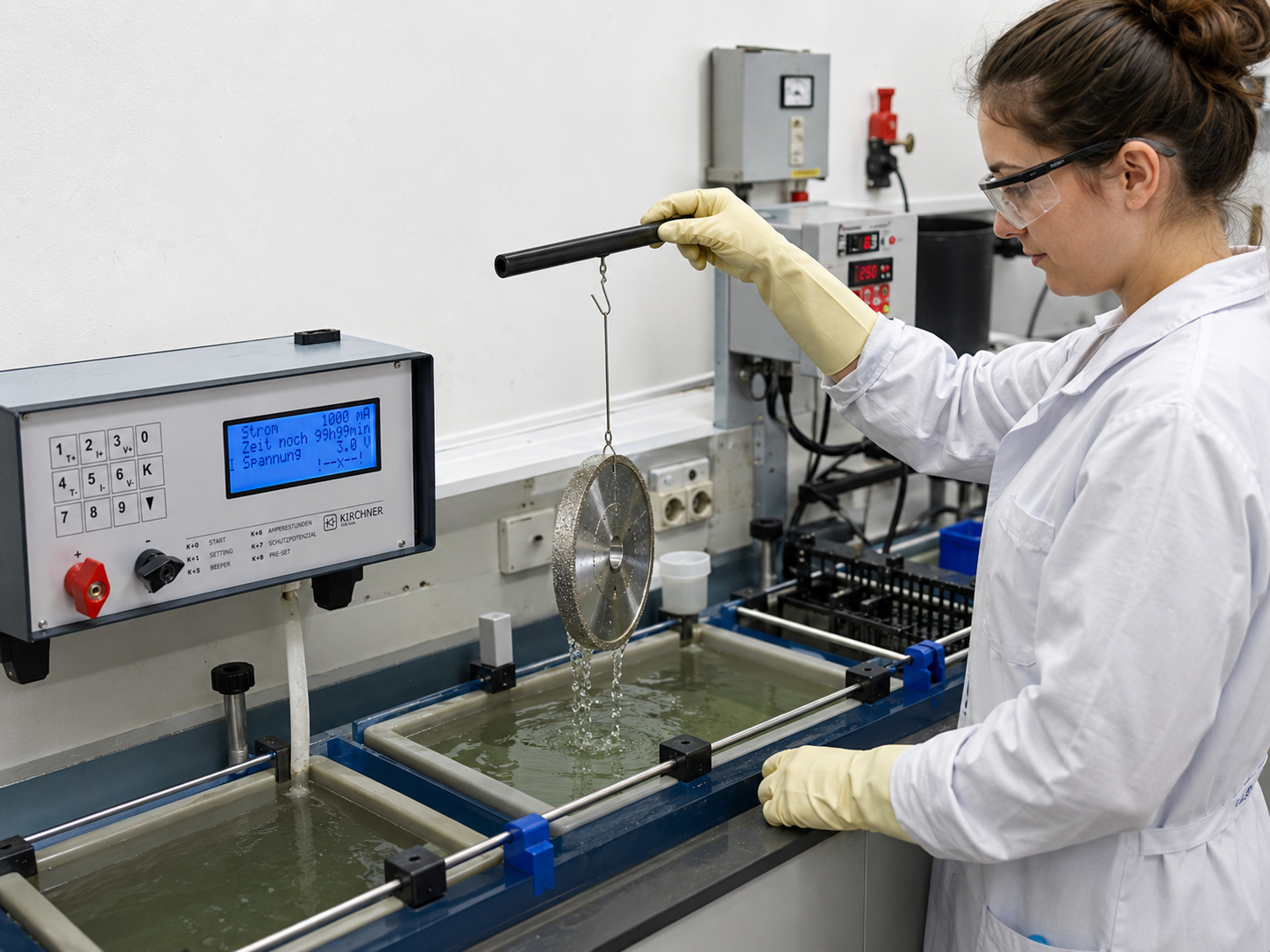

The power supply of the electroplating system plays a particularly important role. It must be stable, precisely adjustable, and reliable. Even small fluctuations in current can affect the nickel deposition. If the current density is too high, the nickel layer may grow too quickly, become rough or brittle, and embed the diamond grains in an unfavorable way. If the current density is too low, the process takes longer and the diamonds may not be sufficiently embedded. A precise power supply ensures that the nickel layer is built up evenly and that the diamond grains are embedded to the correct depth.

Especially for high-quality profile tools, dressing rolls, or complex tool geometries, uniform current distribution is particularly important. Different distances between the anode and the workpiece, edges, recesses, or narrow contours can lead to local differences in deposition. A high-quality electroplating power supply allows accurate adjustment of current, voltage, and process time. This makes it possible to achieve reproducible results, reduce scrap, and produce tools with consistently high quality.

After electroplating, the tool is removed from the bath, thoroughly rinsed, and dried. Depending on the application, further post-treatment may follow, such as heat treatment or a final inspection of coating thickness, grain distribution, and dimensional accuracy.

The quality of electroplated diamond tools therefore depends not only on the diamond grains used and the tool body, but to a large extent on the process control. A strong, uniform nickel bond prevents diamond grains from breaking out prematurely during use. At the same time, sufficient grain protrusion must be maintained so that the tool can cut, grind, or dress effectively.

A high-quality and precise power supply is therefore a key component in the manufacturing process. It directly influences bond strength, tool life, surface quality, and reproducibility. Only when current, voltage, and process time are precisely controlled can electroplated diamond tools be produced that reliably meet the high demands of industrial applications.
